分配MCP工具给指定节点

分配指定的 MCP 给指定的 node 节点

实战代码可见：spring-ai-alibaba-examples 下的 graph 目录，本章代码为其 mcp-node 模块

pom.xml

<dependencies>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-graph-core</artifactId>
        <version>${spring-ai-alibaba.version}</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
</dependencies>

application.yml

注意 spring.ai.graph.nodes 下的配置，node 配置对应 mcp 服务的映射

server:
  port: 8080
spring:
  application:
    name: mcp-node
  ai:
    openai:
      api-key: ${AIDASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      chat:
        options:
          model: qwen-max
    mcp:
      client:
        enabled: true
        name: my-mcp-client
        version: 1.0.0
        request-timeout: 30s
        type: ASYNC  # or ASYNC for reactive applications
        sse:
          connections:
            server1:
              url: http://localhost:19000

    graph:
      nodes:
        node2servers:
          mcp-node:
            - server1

config

McpNodeProperties

node 配置对应 mcp 服务的映射类

McpNodeProperties查看完整代码

package com.spring.ai.tutorial.graph.mcp.config;

import org.springframework.boot.context.properties.ConfigurationProperties;

import java.util.Map;
import java.util.Set;

@ConfigurationProperties(prefix = McpNodeProperties.PREFIX)
public class McpNodeProperties {

  public static final String PREFIX = "spring.ai.graph.nodes";

  private Map<String, Set<String>> node2servers;

  public Map<String, Set<String>> getNode2servers() {
      return node2servers;
  }

  public void setNode2servers(Map<String, Set<String>> node2servers) {
      this.node2servers = node2servers;
  }
}

McpGaphConfiguration

注入 McpClientToolCallbackProvider，提供给 McpNode

McpGaphConfiguration查看完整代码

package com.spring.ai.tutorial.graph.mcp.config;

import com.alibaba.cloud.ai.graph.GraphRepresentation;
import com.alibaba.cloud.ai.graph.KeyStrategy;
import com.alibaba.cloud.ai.graph.KeyStrategyFactory;
import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;
import com.spring.ai.tutorial.graph.mcp.node.McpNode;
import com.spring.ai.tutorial.graph.mcp.tool.McpClientToolCallbackProvider;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.nodeasync;

@Configuration
@EnableConfigurationProperties({ McpNodeProperties.class })
public class McpGaphConfiguration {

  private static final Logger logger = LoggerFactory.getLogger(McpGaphConfiguration.class);

  @Autowired
  private McpClientToolCallbackProvider mcpClientToolCallbackProvider;

  @Bean
  public StateGraph mcpGraph(ChatClient.Builder chatClientBuilder) throws GraphStateException {
      KeyStrategyFactory keyStrategyFactory = () -> {
          HashMap<String, KeyStrategy> keyStrategyHashMap = new HashMap<>();

          // 用户输入
          keyStrategyHashMap.put("query", new ReplaceStrategy());
          keyStrategyHashMap.put("mcpcontent", new ReplaceStrategy());
          return keyStrategyHashMap;
      };

      StateGraph stateGraph = new StateGraph(keyStrategyFactory)
              .addNode("mcp", nodeasync(new McpNode(chatClientBuilder, mcpClientToolCallbackProvider)))

              .addEdge(StateGraph.START, "mcp")
              .addEdge("mcp", StateGraph.END);

      // 添加 PlantUML 打印
      GraphRepresentation representation = stateGraph.getGraph(GraphRepresentation.Type.PLANTUML,
              "mcp flow");
      logger.info("
=== mcp UML Flow ===");
      logger.info(representation.content());
      logger.info("==================================
");

      return stateGraph;
  }
}

tool

McpClientToolCallbackProvider

根据节点名称，匹配对应的 MCP 提供的 ToolCallback

McpClientToolCallbackProvider查看完整代码

package com.spring.ai.tutorial.graph.mcp.tool;

import com.spring.ai.tutorial.graph.mcp.config.McpNodeProperties;
import org.apache.commons.compress.utils.Lists;
import org.glassfish.jersey.internal.guava.Sets;
import org.springframework.ai.mcp.McpToolUtils;
import org.springframework.ai.mcp.client.autoconfigure.properties.McpClientCommonProperties;
import org.springframework.ai.tool.ToolCallback;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.definition.ToolDefinition;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Set;

@Service
public class McpClientToolCallbackProvider {

  private final ToolCallbackProvider toolCallbackProvider;

  private final McpClientCommonProperties commonProperties;

  private final McpNodeProperties mcpNodeProperties;

  public McpClientToolCallbackProvider(ToolCallbackProvider toolCallbackProvider,
                                       McpClientCommonProperties commonProperties, McpNodeProperties mcpNodeProperties) {
      this.toolCallbackProvider = toolCallbackProvider;
      this.commonProperties = commonProperties;
      this.mcpNodeProperties = mcpNodeProperties;
  }

  public Set<ToolCallback> findToolCallbacks(String nodeName) {
      Set<ToolCallback> defineCallback = Sets.newHashSet();
      Set<String> mcpClients = mcpNodeProperties.getNode2servers().get(nodeName);
      if (mcpClients == null || mcpClients.isEmpty()) {
          return defineCallback;
      }

      List<String> exceptMcpClientNames = Lists.newArrayList();
      for (String mcpClient : mcpClients) {
          // my-mcp-client
          String name = commonProperties.getName();
          // mymcpclientserver1
          String prefixedMcpClientName = McpToolUtils.prefixedToolName(name, mcpClient);
          exceptMcpClientNames.add(prefixedMcpClientName);
      }

      ToolCallback[] toolCallbacks = toolCallbackProvider.getToolCallbacks();
      for (ToolCallback toolCallback : toolCallbacks) {
          ToolDefinition toolDefinition = toolCallback.getToolDefinition();
          // mymcpclientserver1getCityTimeMethod
          String name = toolDefinition.name();
          for (String exceptMcpClientName : exceptMcpClientNames) {
              if (name.startsWith(exceptMcpClientName)) {
                  defineCallback.add(toolCallback);
              }
          }
      }
      return defineCallback;
  }
}

node

McpNode

通过 ToolCallbacks 为节点配置 MCP 工具

McpNode查看完整代码

import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.action.NodeAction;

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.tool.ToolCallback;

import java.util.HashMap;
import java.util.Map;
import java.util.Set;

import reactor.core.publisher.Flux;

/**
* MCP 节点实现
*/
public static class McpNode implements NodeAction {

  private static final String NODENAME = "mcp-node";

  private final ChatClient chatClient;

  public McpNode(ChatClient.Builder chatClientBuilder, Set<ToolCallback> toolCallbacks) {
      // 为节点配置 MCP 工具
      this.chatClient = chatClientBuilder
              .defaultToolCallbacks(toolCallbacks.toArray(ToolCallback[]::new))
              .build();
  }

  @Override
  public Map<String, Object> apply(OverAllState state) {
      String query = state.value("query", "");
      Flux<String> streamResult = chatClient.prompt(query).stream().content();
      String result = streamResult.reduce("", (acc, item) -> acc + item).block();

      HashMap<String, Object> resultMap = new HashMap<>();
      resultMap.put("mcpcontent", result);

      return resultMap;
  }
}

配置 MCP 节点

配置 MCP 节点查看完整代码

import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.action.NodeAction;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.tool.ToolCallback;

import java.util.Set;

/**
* 配置 MCP 节点
*/
public static void configureMcpNode(ChatClient.Builder chatClientBuilder, Set<ToolCallback> toolCallbacks) {
  McpNode mcpNode = new McpNode(chatClientBuilder, toolCallbacks);
  System.out.println("MCP node configured successfully");
}

controller

McpController

McpController查看完整代码

package com.spring.ai.tutorial.graph.mcp.controller;

import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.RunnableConfig;
import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.Map;
import java.util.Optional;

@RestController
@RequestMapping("/graph/mcp")
public class McpController {

  private static final Logger logger = LoggerFactory.getLogger(McpController.class);

  private final CompiledGraph compiledGraph;

  public McpController(@Qualifier("mcpGraph") StateGraph stateGraph) throws GraphStateException {
      this.compiledGraph = stateGraph.compile();
  }

  @GetMapping("/call")
  public Map<String, Object> call(@RequestParam(value = "query", defaultValue = "北京时间现在几点钟", required = false) String query,
                                    @RequestParam(value = "threadid", defaultValue = "yingzi", required = false) String threadId){
      RunnableConfig runnableConfig = RunnableConfig.builder().threadId(threadId).build();
      Map<String, Object> objectMap = new HashMap<>();
      objectMap.put("query", query);
      Optional<OverAllState> invoke = this.compiledGraph.invoke(objectMap, runnableConfig);
      return invoke.map(OverAllState::data).orElse(new HashMap<>());
  }

}

MCP Server 服务提供

提供一个 MCP Server 服务，远端 or 本地都可以

这里本地启动一个MCP Server，提供一个时间服务

效果

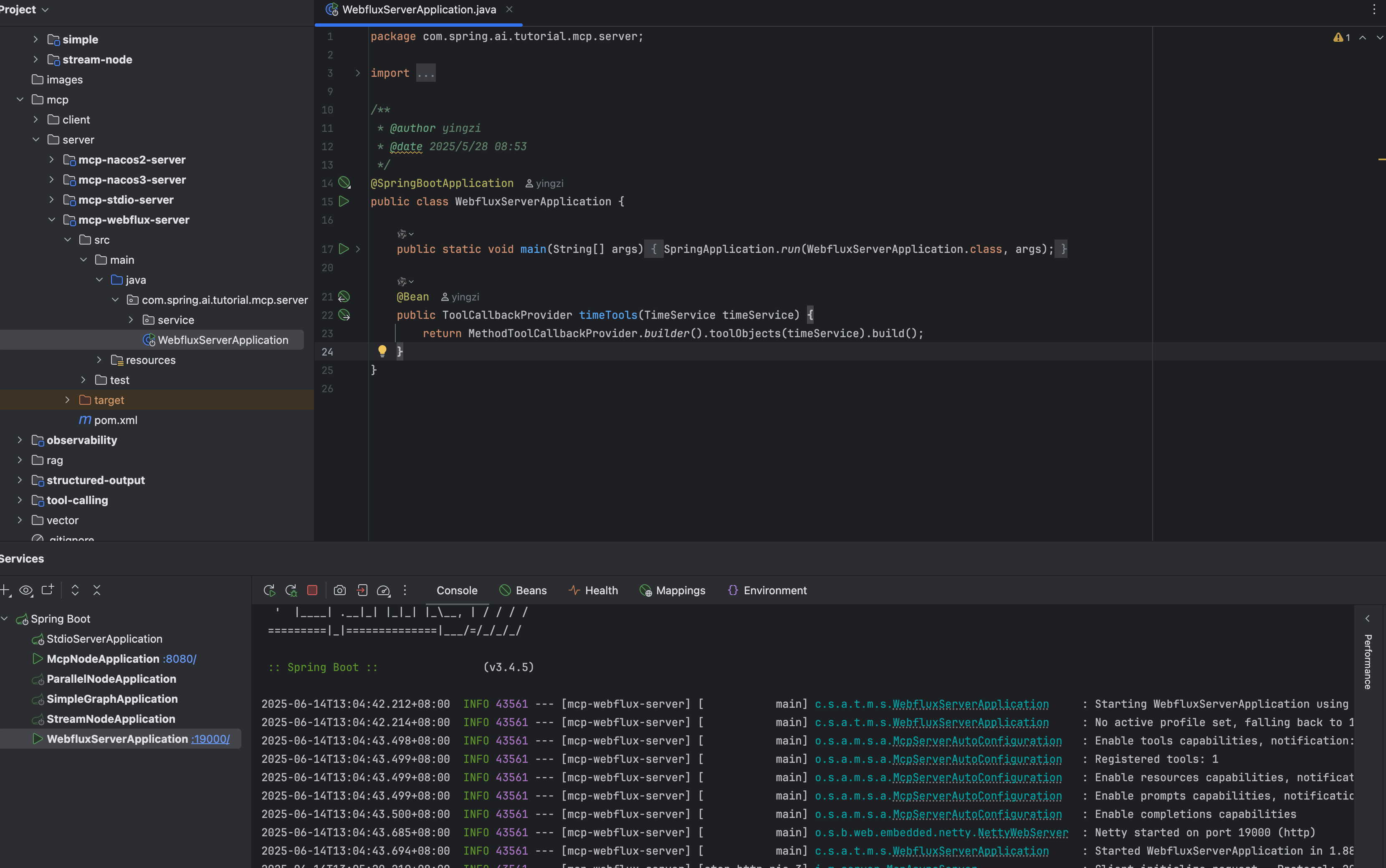

启动本地 MCP Server，提供时间服务

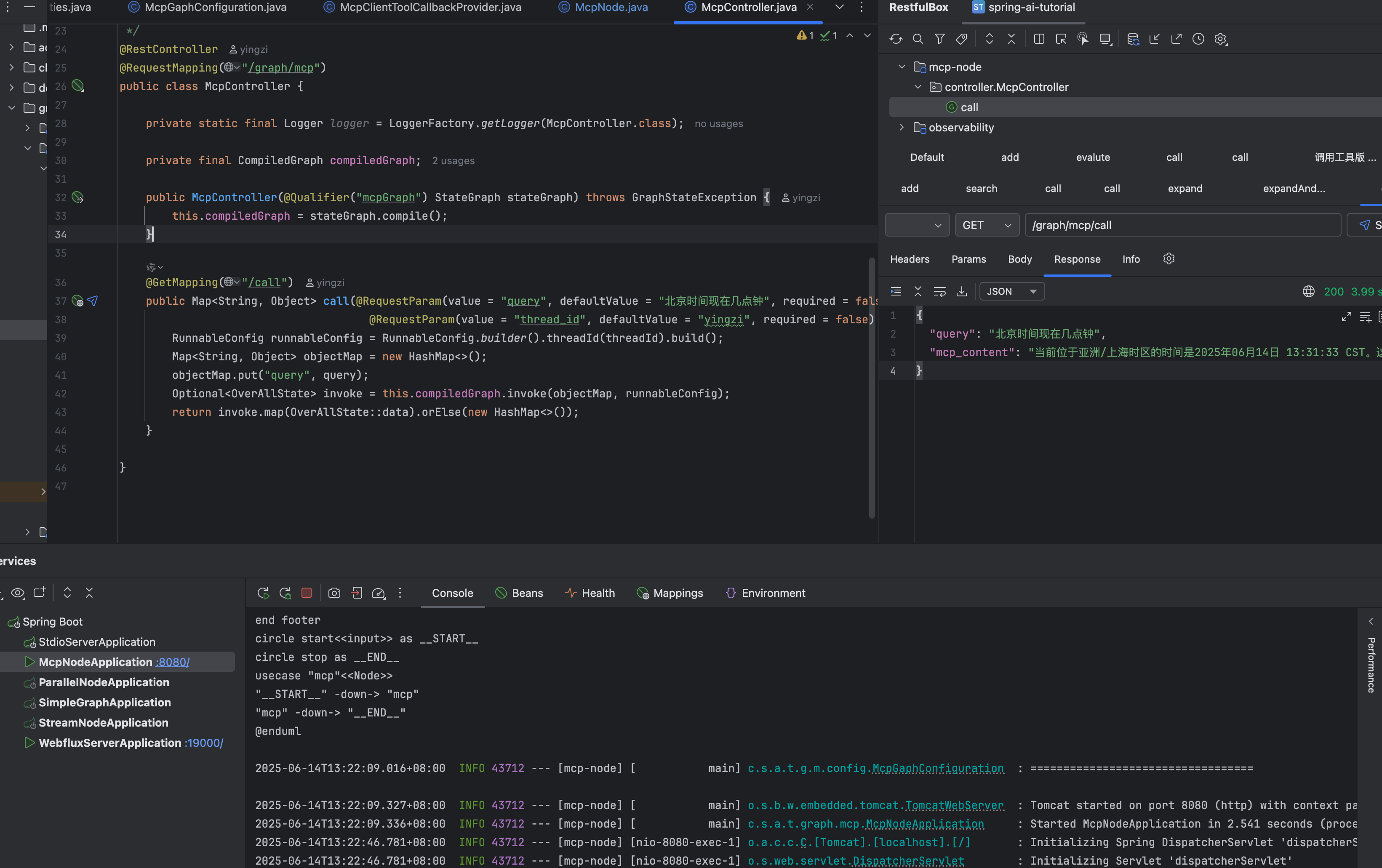

调用接口，触发本地端 MCP Server 提供的时间服务
